Ksi Lisims LNG
SECTOR: Marine Nearshore – LNG Export Facility
LOCATION: british columbia, canada
DATE: 2024
EQUIPMENT: long stroke sonic drill rig, multidrill rotary rig, in-situ testing tools, marine barge platform

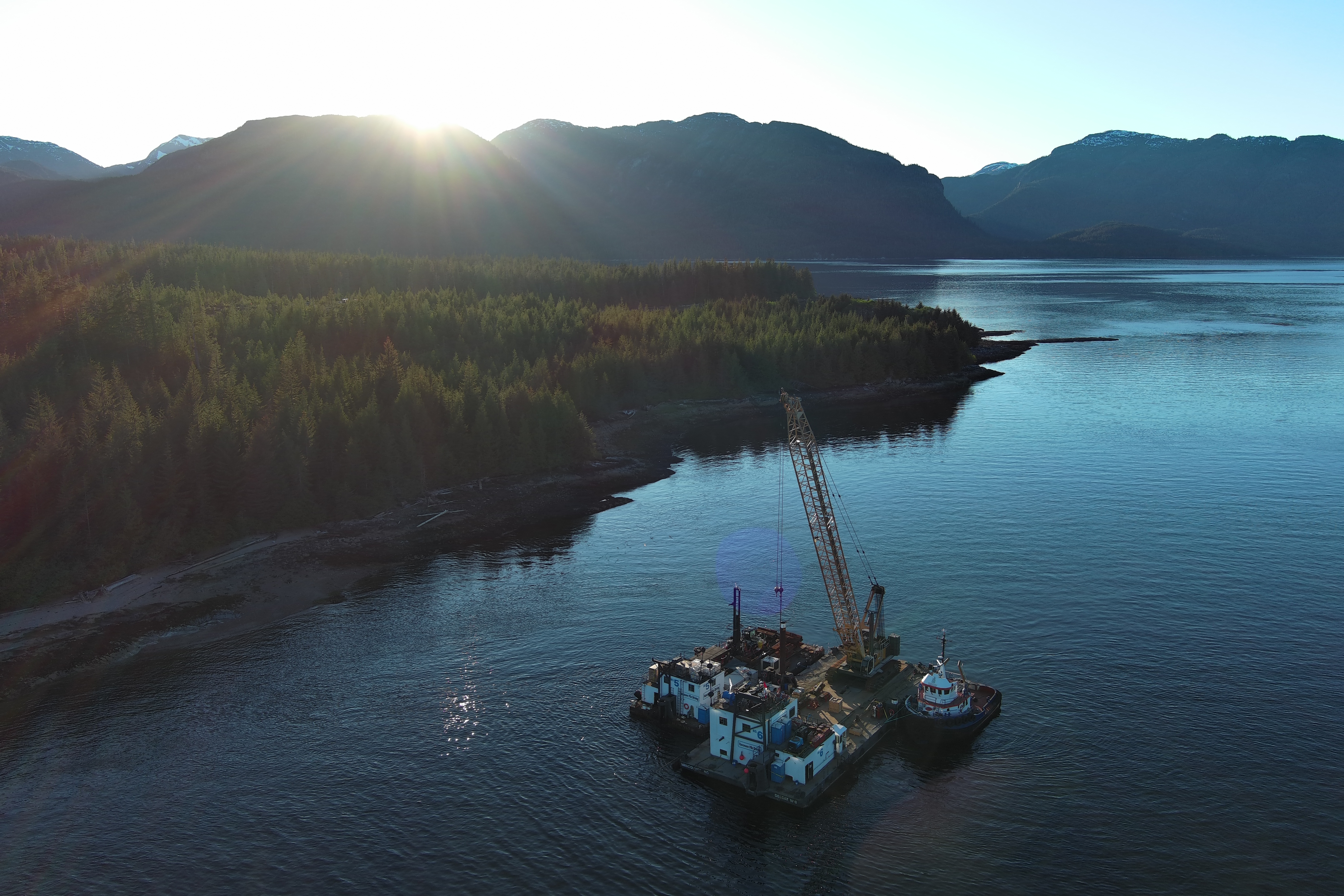

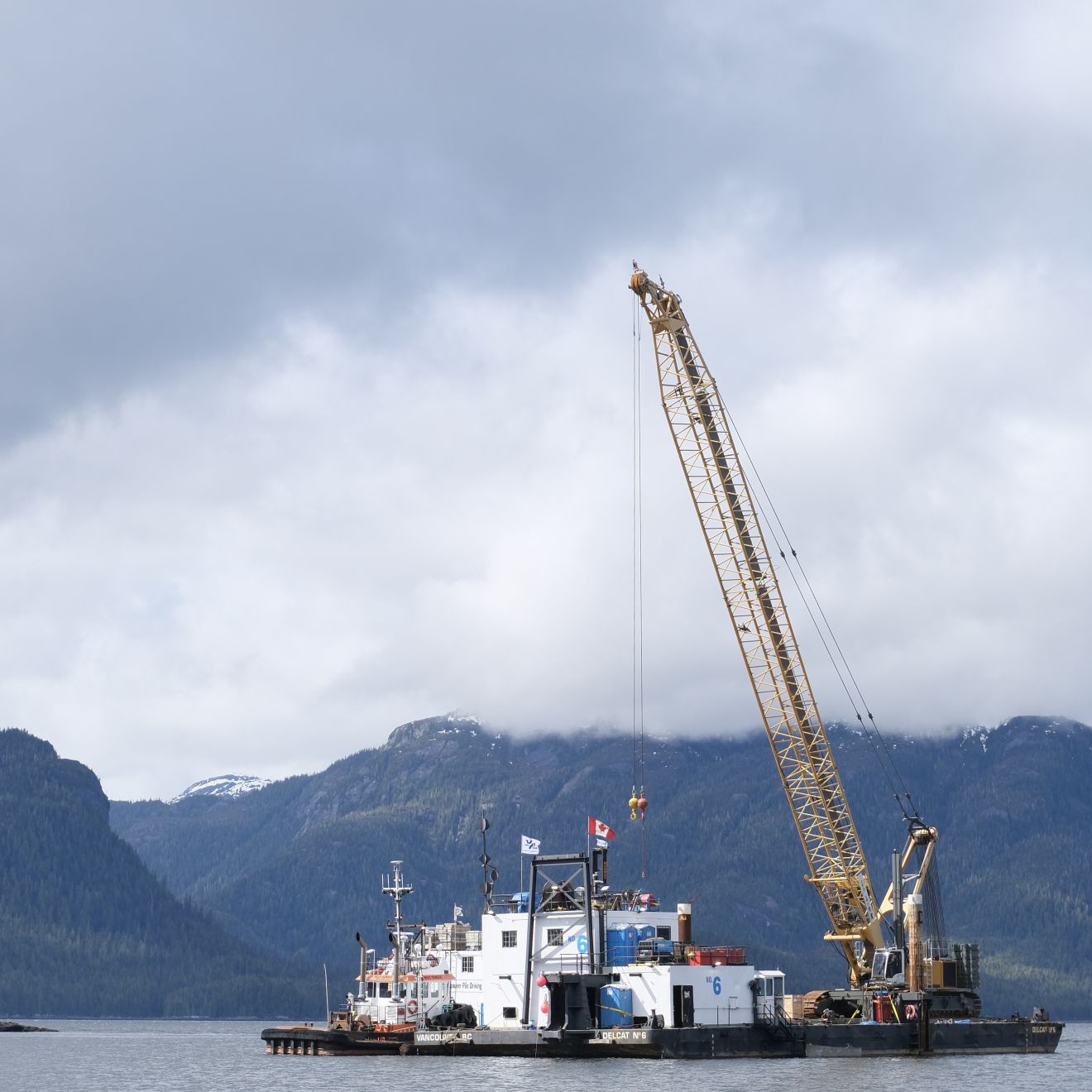

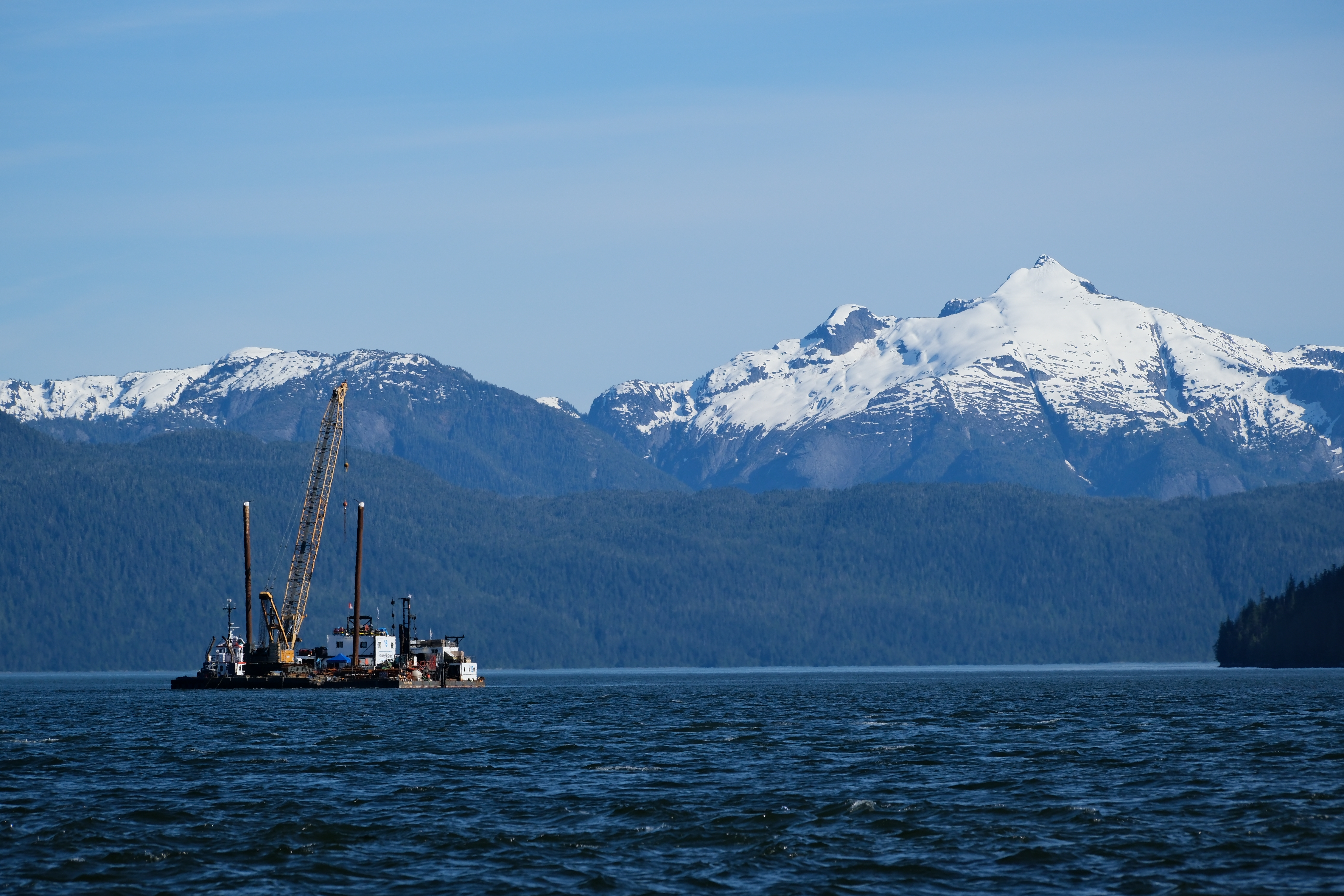

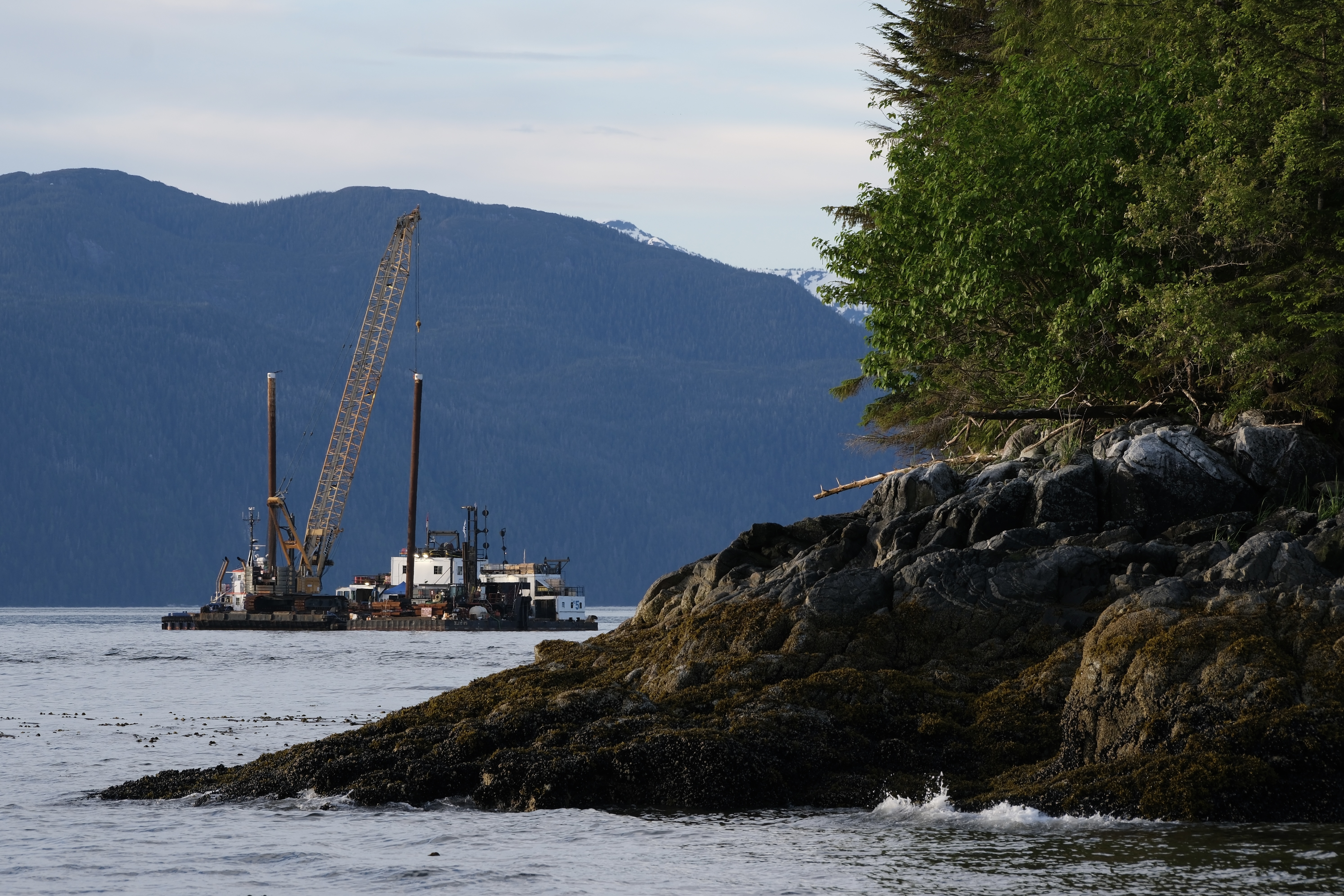

ConeTec conducted a site investigation for the Ksi Lisims LNG project, a proposed floating LNG export facility on Nisga’a Nation land near Gingolx, British Columbia. Using a custom CPT deployment system, ConeTec efficiently profiled soft sediments at deepwater locations, overcoming challenges such as 7-meter tidal swings, remote boat access, and water depths over 100 meters to deliver essential data for the project’s development.
SCOPE OF WORK
MARINE
-
9x CPTs
-
22x boreholes (20x Sonic and 2x Rotary)
-
Electric Vane Shear Testing (EVST)
-
Seismic Shear Wave Testing (Vs) with the CPTs
-
Both Sonic and HQ Core drilling
-
Top push CPT deployed in +130m water depths
-
Drilling occurred in +50m water depths

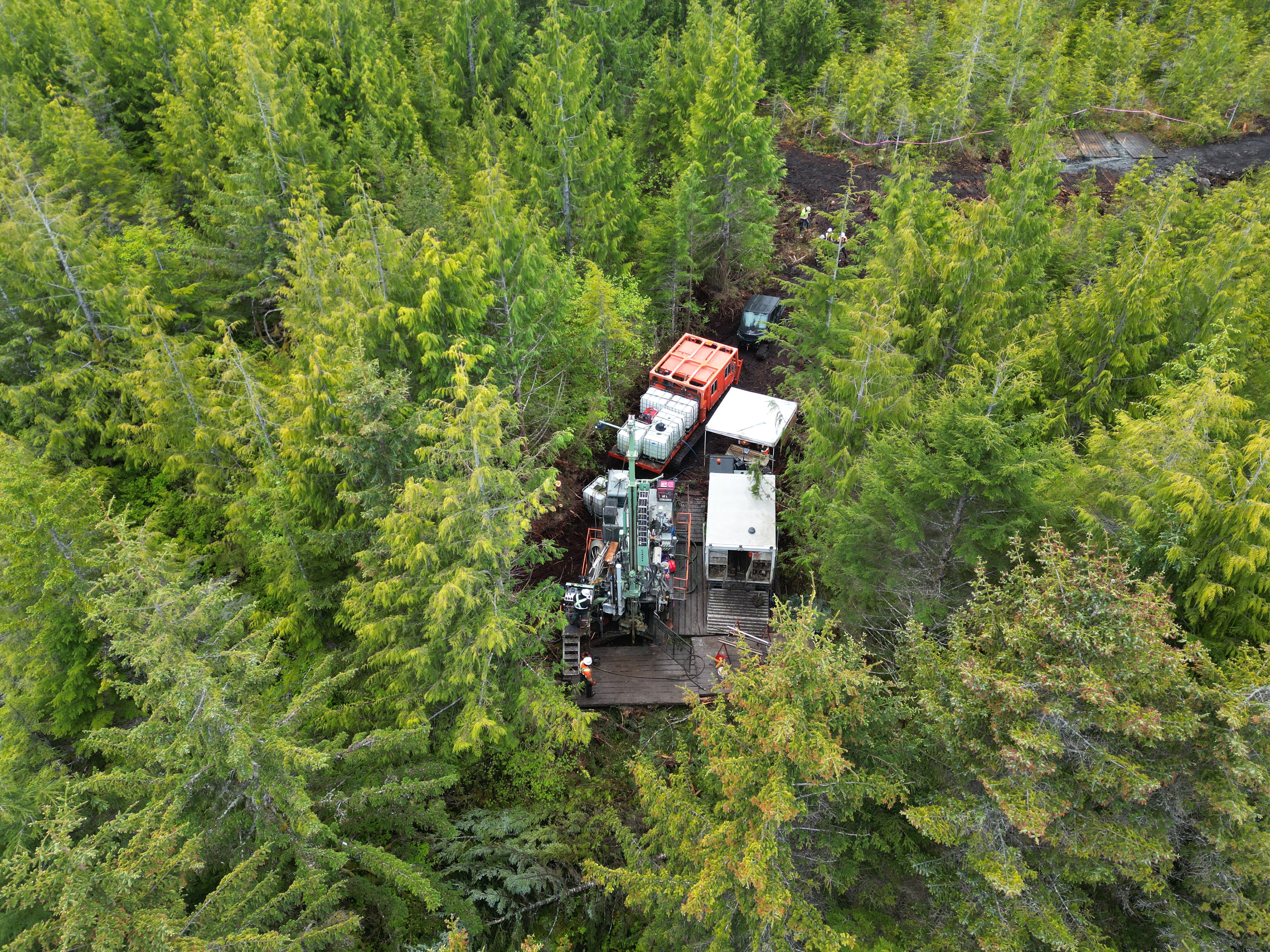

ON-LAND
-
Mud rotary drilling
-
Auger drilling
-
HQ core drilling
SUCCESSES
-
Developed a custom rapid deployment top ush CPT system
-
Installed a survey base station on top of mountain to provide centimeter level geolocating accuracy
-
Drilled deeper that scoped on land
-
Incident free
-
Completed on time and on budget
-
Completed the marine program ahead of schedule
